Kraft T-Rex
Granulate Dispenser
The smart solution for layer-by-layer protection of concrete products: The KRAFT T-REX granulate dispenser uses any granulate to separate the different layers of concrete products reliably, quickly and cost-effectively.
Functions
Kraft T-Rex
-
Function 1
Kraft T-Rex
The granules required for the system are available on the market in a wide variety of forms. The well structured design of the T-Rex allows the use of almost any type of granules.
-
Function 2
Kraft T-Rex
The T-REX granulate feeder can be placed above a conveyor belt up to a width of 1800 mm. The granules are manually fed into the hopper using a chute (sold separately).
-
Function 3
Kraft T-Rex
Light barriers detect the incoming product, trigger the dosing process and stop the system in case of imminent collision with larger objects. The speed as well as container position is controlled by a control unit with an HMI panel. Other programs, such as those for adjusting the batching speed, are also available as an option.
-
Function 4
Kraft T-Rex

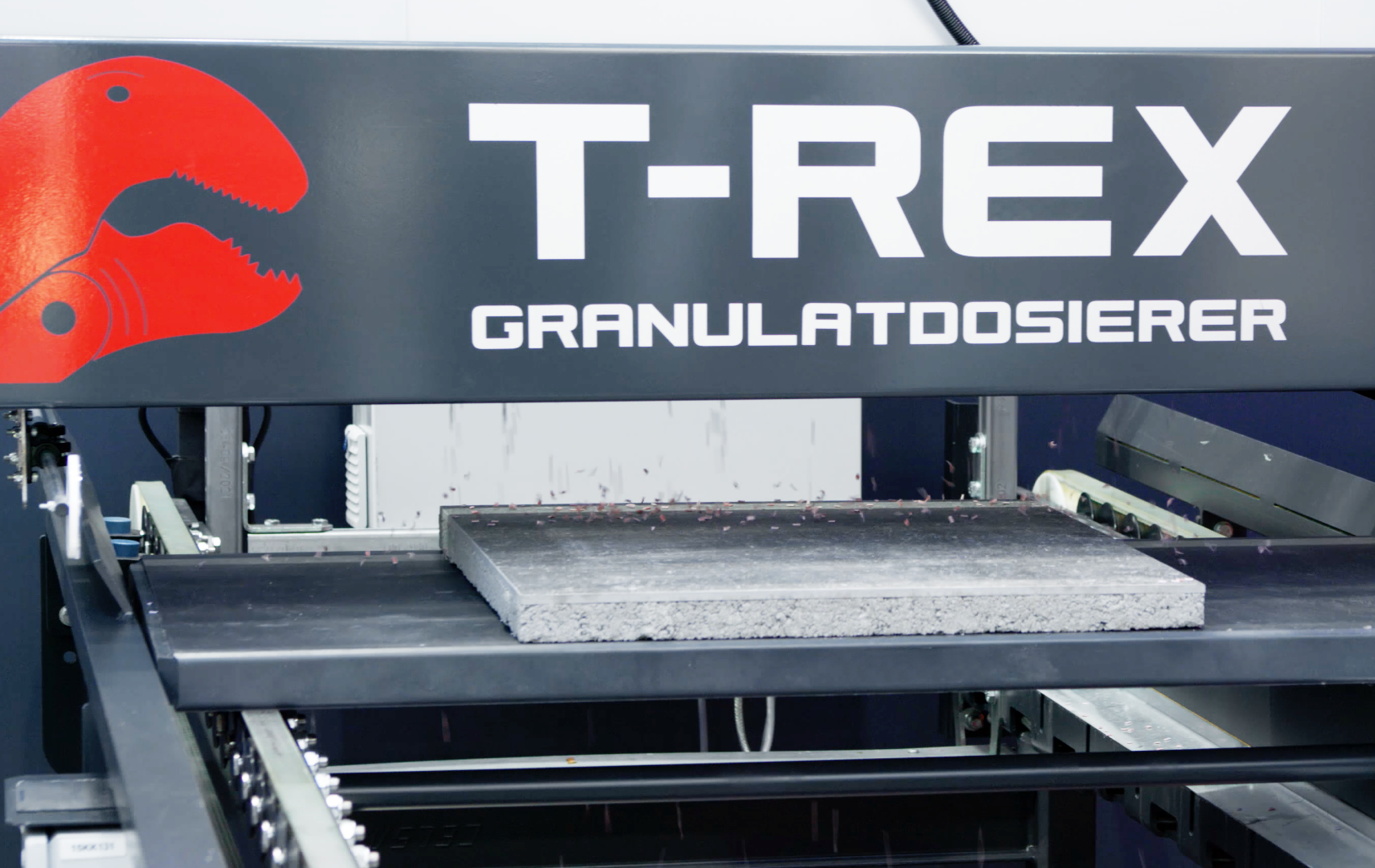

As the concrete blocks move under the batcher, the system automatically spreads the granules over the fresh product, effectively separating one layer from the next. The layers are not in direct contact, which greatly reduces the possibility of scratches and abrasion.
-
Function 5
Kraft T-Rex
The granules keep the layers of finished concrete products apart, allowing air circulation. Moisture can escape, and efflorescence and stains on the stones are prevented.
-
Function 6
Kraft T-Rex
Once set, the T-REX operates without human intervention. Optical sensors detect both products and potential obstacles, ensuring trouble-free operation. Access to the plant's safety area is thus only necessary in emergencies.
Videos
Kraft T-Rex
Kraft T-Rex Product Video
Find out how the Kraft T-Rex Granulate Dispenser works!
Kraft T-Rex in Operation
The T-Rex automatically spreads the right amount of granules on the concrete blocks.
T-Rex Dispenses Granulate - Top View
The T-Rex automatically spreads the right amount of granules on the concrete blocks.
T-Rex Granuate Dispenser - Side View
The T-Rex automatically spreads the right amount of granules on the concrete blocks.
Benefit
Kraft T-Rex
Fully automatic height adjustment for product height from 50 to 500 mm.
Fully automatic adjustment of the spreading width between 750 and 1300 mm, conveyor width 1800 mm
Easy integration into the safety chain of the conveyor possible
Frequency-controlled operation of the spreading roller for economical dosing
Product detection and automatic spreading via light sensors
Automatic collision warning and shutdown with signal transmission to the conveyor
Level and fault indication via 3-color traffic light system
Safe filling via optional components
Access to the safety area only rarely necessary
